Facilities Foundry

For the casting of white metal, two disciplines are used, namely centrifugal and static casting.

Capacity of casting machine nr.1
Outer diameter: 570 mm
Length:                  600 mm

Sizes stated maximum bearing bush

Capacity of casting machine 2
Outer diameter: 870 mm
Length:                  1050 mm

Sizes stated maximum bearing bush

Shared bearings of various sizes, both small and large, can be cast using static casting
provided with a white metal layer.

To act quickly in the field of repair, we can melt existing products using a smelting bath.

A tin bath is used to realize the tinning layer.

A number of white metal types that we can cast are lead or tin-based.

A number of white metals are specified below:

Lead base: PbSb10Sn6

Tin base: SnSb12 Cu6 Pb2

If desired, we can also use other white metal types.

Facilities Machining

Lathe Sculfort 420

Turning diameter Turning diameter Length tdc Workpiece weight Digital readout photo.....

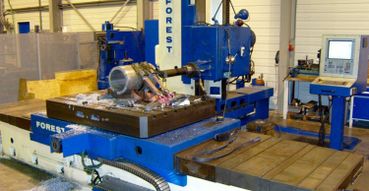

Cutter bench Forest

X-length Y-height Z-depth B-table Workpiece weight Control
2000mm 1150mm 1000mm 360gr. 5000kg Heidenhain TNC 320

BMSY 450 sawing machine

Column drilling machine

Welding equipment MIG / MAG

Blasting cabin with dimensions of 2.5 x 2.5 x 6 m

Forklift with a capacity of 2.5 tons

Lifting capacity of overhead crane of 10 tons.
